Iridium GO! exec - Error Codes – BlueCosmo

For LED statuses please see: Iridium GO! exec - LED Status Indicators

System Errors and Warnings

Any current system errors and warnings that are detected by the Iridium GO! exec will be captured
under the "System Errors and Warnings" menu. To access the menu:

On the exec device touchscreen UI: Select Settings > System Errors and Warnings

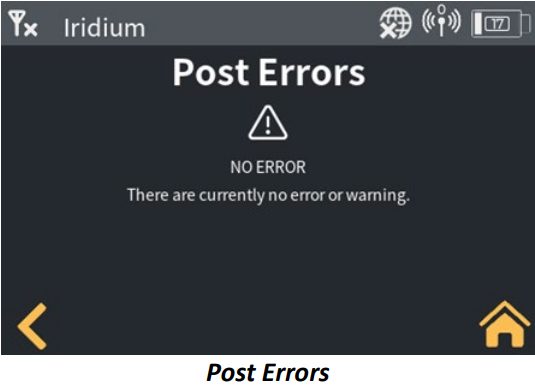

Post Errors

The Iridium GO! exec performs a Power On Self Test during power on events. The table below is a summary of the errors that may be detected. Any errors will then be visible in the Post Errors menu item.

On the exec device touchscreen UI: Select About > Post errors

Warnings and System/Post Errors

Error Code	Category	Issue
Error 100	Battery Temperature	The Device Battery temperature is critically high (> 60deg C). The Device will power off automatically. Note: Once the device has powered off automatically due to the device battery temperature is critically high, for safety reason, the device cannot be powered on unless the device battery temperature drops below 58 C
Error 101	Battery Temperature	The Device Battery temperature is critically low (< -20deg C). The Device will power off automatically.
Warning 102	Battery Temperature	The Device Battery temperature is approaching the maximum allowed level at which point the Device will power off automatically. Move the Device to a cooler location to avoid shutdown.
Warning 103	Battery Temperature	The Device Battery temperature is approaching the minimum allowed level at which point the Device will power off automatically. Move the Device to a warmer location to avoid shutdown.
Error 104	Battery Temperature	An internal Error has occurred. If the error persists over a power cycle, contact support.
Error 200	Battery Level	The Device Battery level is critically low. The Device will power off automatically.
Warning 201	Battery Level	The Device Battery level is approaching the minimum allowed at which point the Device will power off automatically.
Error 202	Battery Level	An internal Error has occurred. If the error persists over a power cycle, contact support.
Error 204	Battery Level	An internal Error has occurred. If the error persists over a power cycle, contact support.
Warning 300	Battery Charging Temperature	The Device has stopped charging the Battery due to critically high Battery temperature. Move the Device to a cooler location to resume charging.
Warning 301	Battery Charging Temperature	The Device has stopped charging the Battery due to critically low Battery temperature. Move the Device to a warmer location to resume charging
Warning 302	Battery Charging Temperature	The Device Battery temperature is approaching the maximum allowed during charging at which point the Device will stop charging the Battery. Move the Device to a cooler location to continue successful charging.
Warning 303	Battery Charging Temperature	The Device Battery temperature is approaching the minimum allowed during charging at which point the Device will stop charging the Battery. Move the Device to a warmer location to continue successful charging.
Error 304	Battery Charging Temperature	An internal Error has occurred. If the error persists over a power cycle, contact support.
Error 502	Satellite modem temperature	The Device Satellite modem temperature is critically high. The Device will power off automatically. Move the Device to a cooler location to resume operation.
Error 503	Satellite modem temperature	The Device Satellite modem temperature is critically low. The Device will power off automatically. Move the Device to a warmer location to resume operation.
Warning 504	Satellite modem temperature	The Device Satellite modem temperature is approaching the maximum allowed at which point the Device will power off automatically. Move the Device to a cooler location to continue successful operation.
Warning 505	Satellite modem temperature	The Device Satellite modem temperature is approaching the minimum allowed at which point the Device will power off automatically. Move the Device to a warmer location to continue successful operation.
Error 600 Internal device error	Satellite modem temperature	An internal hardware or software error has been detected. If possible, the user can try cycling the power or performing a factory reset of the device. If the error persists, please contact support.
Error 601	Satellite modem temperature	The Device Satellite modem temperature is critically high. The Device will power off automatically. Move the Device to a cooler location to resume operation.
Error 602	Satellite modem temperature	The Device Satellite modem temperature is critically low. The Device will power off automatically. Move the Device to a warmer location to resume operation
Error/warning 603 – 1050. Internal device error		An internal hardware or software error has been detected. If possible, the user can try cycling the power or performing a factory reset of the device. If the error persists, please contact support.
